Brand Name : Sourcelight or OEM
Model Number : XFP 120KM
Certification : CE/FCC/RoHS/TUV/UL
Place of Origin : Shenzhen,China
MOQ : 1PCS
Price : Get Latest Price
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 100PCS Per Week
Delivery Time : Shipped in 1~3 days after PO confirmed
Packaging Details : 10PCS or 20PCS Plastic trays; 1pc gift Box.
Datarate : 10Gbps
Transmitter : EML Laser
Receiver : APD
TX Output Power : 0~+4dBm
RX Sensitivity : -24dBm
Connector : Duplex LC/UPC

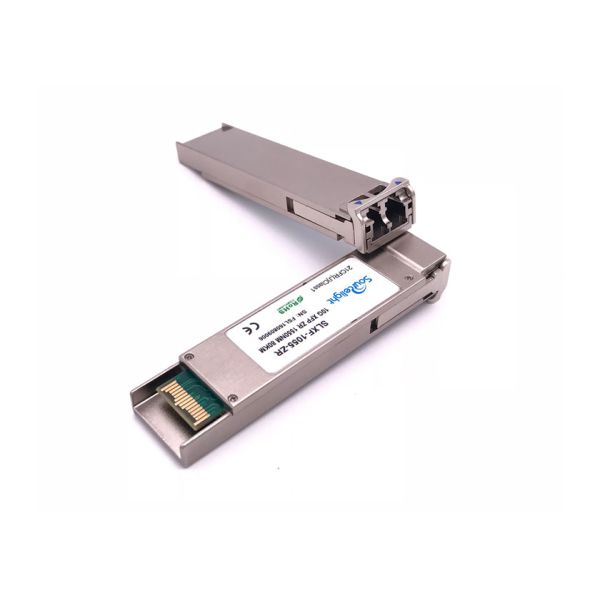

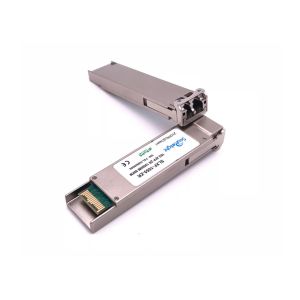

10gbase-Zr 1550nm 120km With Edfa Ddm Xfp Optical Transceiver Zr For Ethernet And Ftth
Overview
Sourcelight 120km XFP Transceiver is designed for 10G SDH/SONET and 10G Fiber Channel applications. The transmitter section incorporates a cooled EML laser, and the receiver section consists of a APD photodiode integrated with a TIA, Integrated low power dual CDR with Electronic Dispersion Compensation(EDC).
The EDC for 10Gb/s 1550nm Links Project initiates the standardization of optical links that benefit from the technical and economic advantages of EDC, extending the reach of present 10Gb/s 1600ps/nm (80km) technology to 2400ps/nm (120km).

Features

Parameter
| Package (Form Factor) | XFP |
| Data Rate (typical) | 10.3 Gb/s |
| Centre Wavelength | 1550nm |
| Distance | 120km (with EDFA) |
| Diagnostics | Digital Monitor |
| Transmitter | Cooled EML Laser |
| Receiver | APD photo detector |
| TX Output Power (dBm) | 0~+4 |
| RX Sensitivity (dBm) | -24 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC/UPC |

10G XFP
| 10G-XFP-SR | 10G-XFP-SR-SL | 10GBASE-SR 850nm MMF 300m |
| 10G-XFP-LR | 10G-XFP-LR-SL | 10GBASE-LR 1310nm SMF 10km |
| 10G-XFP-ER40 | 10G-XFP-ER-SL | 10GBASE-ER 1550nm SMF 40km |
| 10G-XFP-ZR80 | 10G-XFP-ZR-SL | 10GBASE-ZR 1550nm SMF 80km |

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
|   |
